A 75-inch TV weighs between 25 and 45kg, requires a two-person installation, and places significantly higher demands on both the bracket and the wall fixings than a 55-inch TV. This guide covers everything you need to know before mounting a 75-inch TV, and explains why this is one job where professional installation makes more sense than DIY for most homeowners.
Check the weight of your specific model first
“75-inch TV” describes screen diagonal only — not construction. A 75-inch Samsung QLED might weigh 29kg. A 75-inch budget LCD from a lesser brand might weigh 42kg. This weight difference matters when choosing fixings and bracket load ratings. Before ordering a bracket or booking an installation, look up your specific model on the manufacturer's website and note the “weight without stand” figure.
As a general rule, select a bracket rated for at least 1.5× the actual TV weight. A 35kg TV on a bracket rated to 35kg is operating at the maximum stated load — headroom for safety, movement over time, and any audio vibration is helpful.
VESA compatibility — verify before ordering a bracket
VESA (Video Electronics Standards Association) defines the hole pattern on the back of a TV for bracket attachment. For 75-inch TVs, the most common patterns are:
- VESA 400×400 — common on many mid-range 75-inch TVs
- VESA 600×400 — used on some Samsung and Sony large screen models
- VESA 300×300 — rare on 75-inch but does appear on some budget panels
Before ordering a bracket, check the exact VESA pattern for your TV model. A bracket that does not match will not physically attach to the TV. Our VESA compatibility guideexplains how to find your TV's pattern in under two minutes.
Wall requirements for a 75-inch TV
The wall type determines not just which fixings to use but whether the position you have chosen is appropriate:
- Solid brick or concrete — Ideal surface for a 75-inch TV. Use M8 Rawlbolt anchors at all four fixing points. No concerns about load capacity on a correctly drilled solid wall.
- Timber stud + plasterboard — Good surface if you can locate and fix into the studs. Standard UK stud spacing is 400mm or 600mm. A 75-inch TV bracket typically has fixing holes at 300–400mm spacing — align these with studs wherever possible. Use 75mm×No.10 screws into the stud.
- Plasterboard (no stud alignment) — Use cavity fixings rated at 25–30kg each. For a 35kg TV with four fixing points, each anchor needs a minimum 10kg working load rating with safety margin. Grip-It M6 or Toggler Snaptoggle anchors are the appropriate choice. More fixing points are better — use six if the bracket allows it.
- Metal stud (new build) — Use heavy-duty toggle bolts designed for metal stud. Standard wood screws will not grip metal stud reliably.

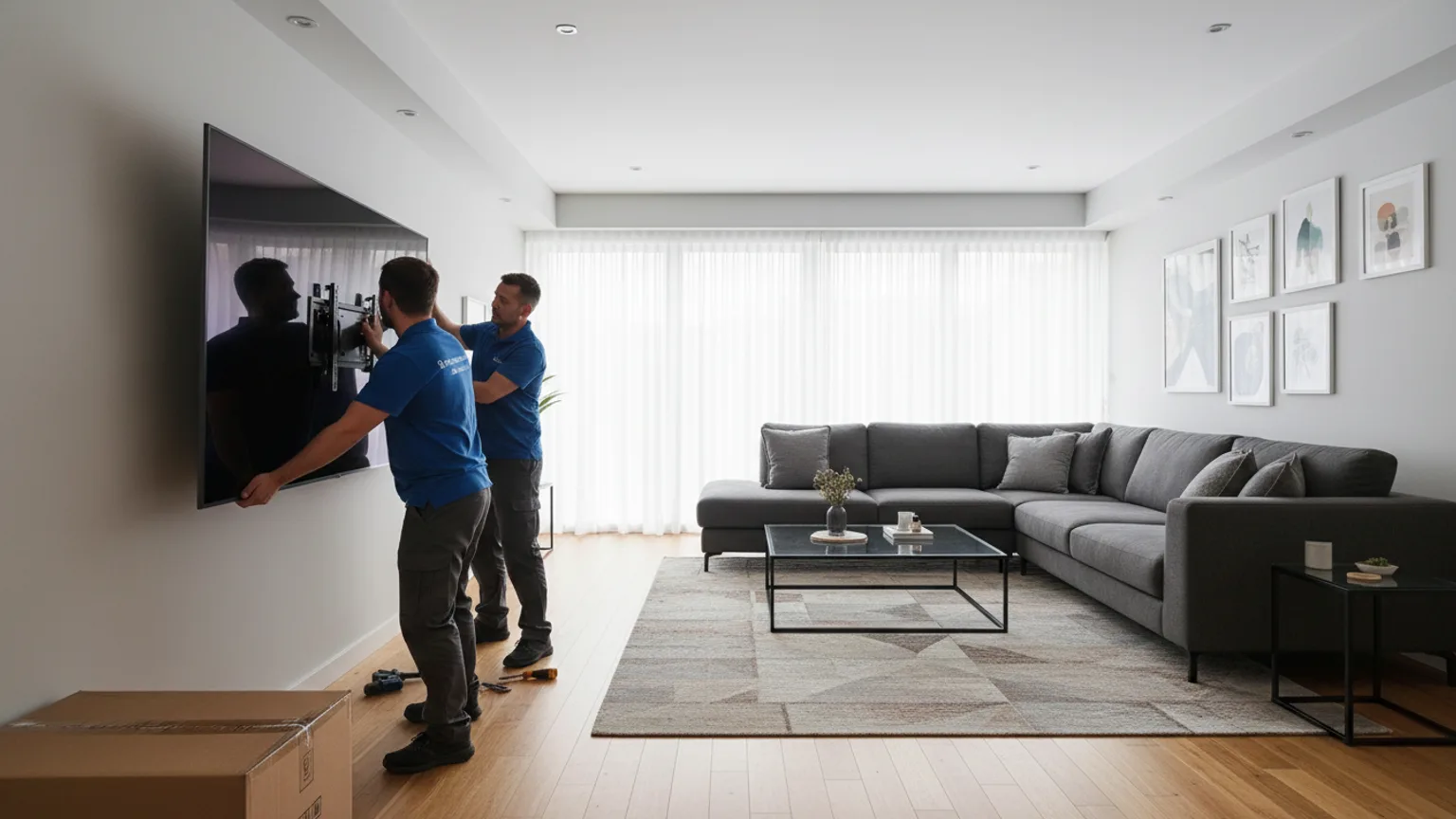

Why 75-inch TV installation must be a two-person job
A 75-inch TV panel is approximately 168cm wide and 95cm tall. At 30–40kg, it is a manageable weight for one person — but the physical size creates serious risks when working alone:
- Manoeuvring the TV close to the bracket on the wall while maintaining control of both sides of the panel is extremely difficult solo. Even a small loss of control can flex the panel and crack the screen.
- Lifting the TV from the ground to bracket height (typically 100–130cm centre) while keeping the VESA holes aligned with the bracket plate requires one person controlling the TV while the other guides the attachment.
- Once the TV is on the bracket, verifying level and tightening any locking bolts requires both hands free — which means the TV needs to be safely supported while this happens.
Our large TV mounting service always includes a two-person team for 65-inch and above. The second person is not a luxury — it is a standard part of delivering a safe installation.
Bracket selection for 75-inch TVs
For most rooms, a heavy-duty tilt bracket is the right choice for a 75-inch TV. It keeps the TV close to the wall (20–50mm profile), allows 10–15 degrees of downward tilt to adjust viewing angle, and has a lower fixing load than full-motion alternatives. The clean profile suits the look of a large screen well.
Full-motion brackets are available for 75-inch TVs and work well on solid walls. On plasterboard or metal stud, we are cautious — the extended arm creates significant leverage on the wall fixings that standard cavity anchors may not handle reliably over time.
To book a professional 75-inch TV installation, get a free estimate in under 60 seconds or Call Us.
